TIE-BACK ANCHORS

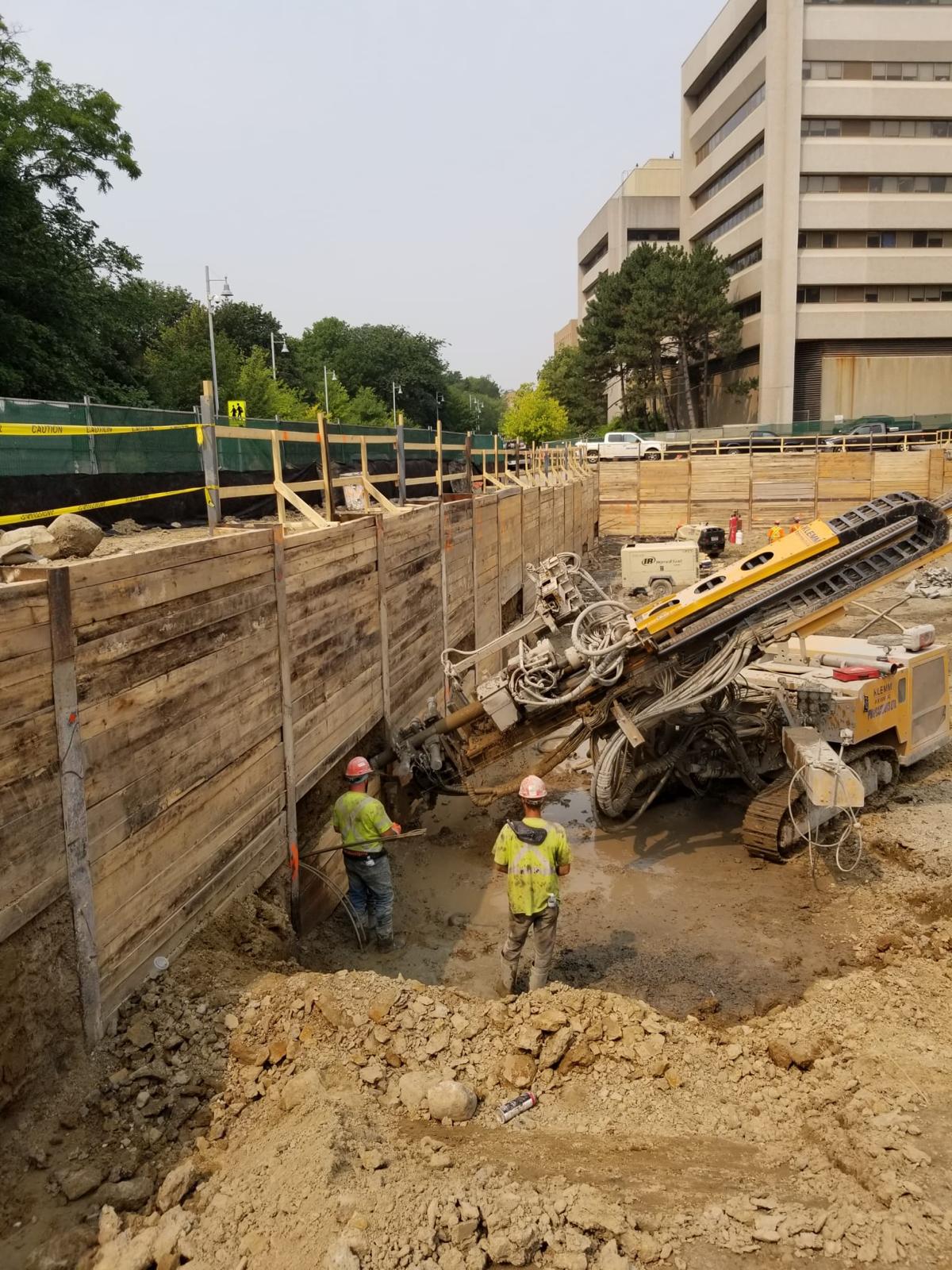

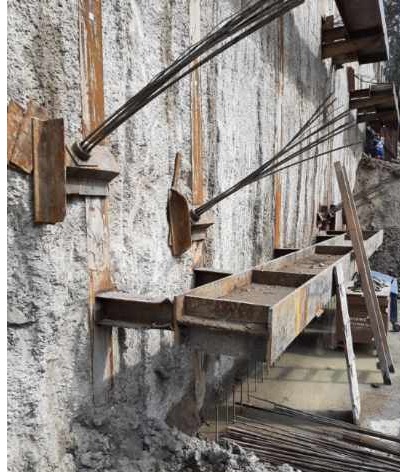

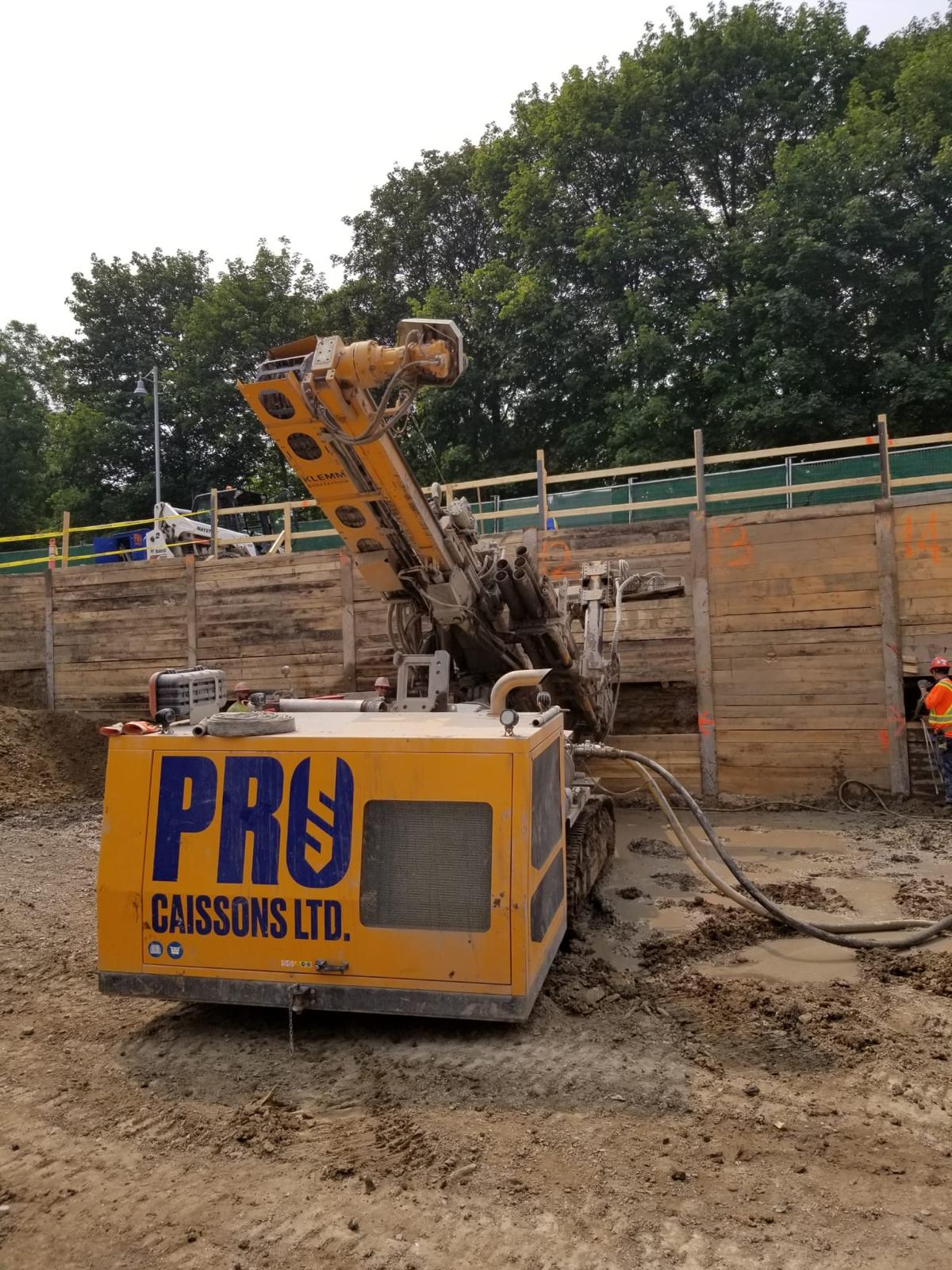

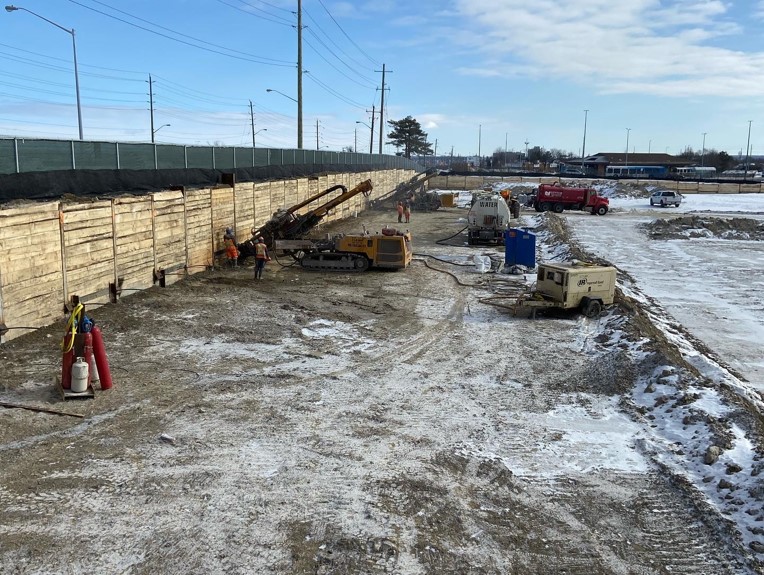

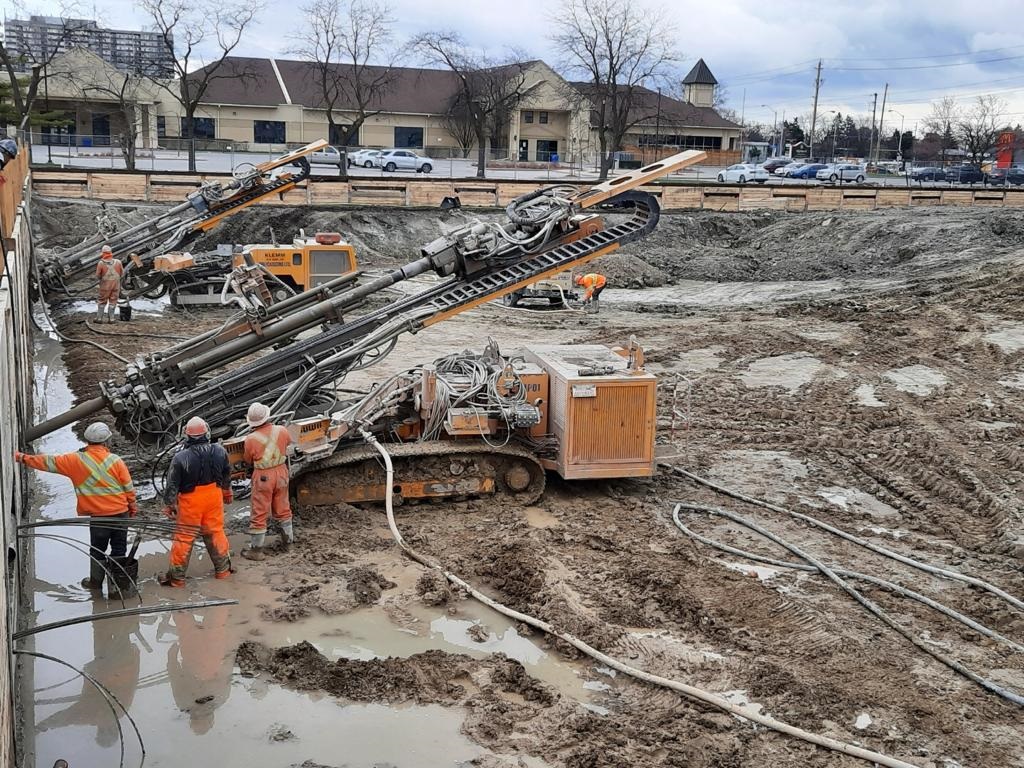

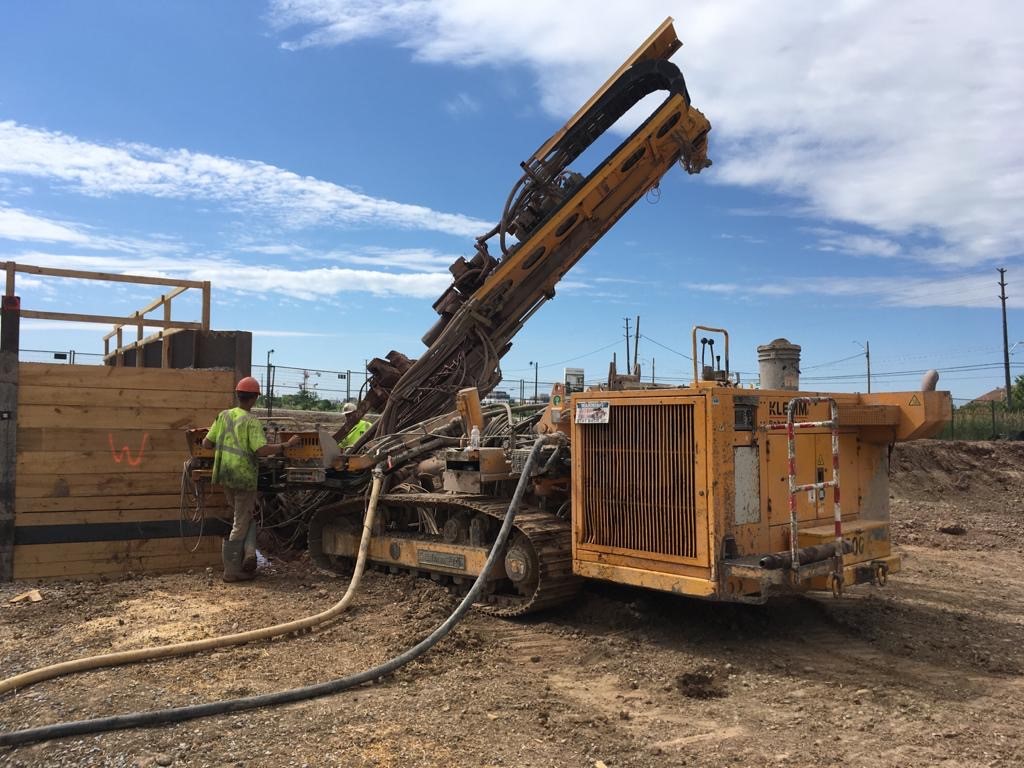

Tie-back anchors are utilized to secure a shoring system. Tie-backs are drilled into soil or rock using a small diameter rod and casing, typically adjacent to a soldier pile, and usually installed at an angle of 25 to 45 degrees. Once the tie-back is drilled the hole is filled with grout and cables are installed in the hole. A tieback connection is welded to the pile and a tensile force is applied to the anchor. This tensile load supports the soldier piles during excavation.

Pro Caissons’ knowledge and experience can help the customer with the design and installation of tie-backs.
